Product Description:

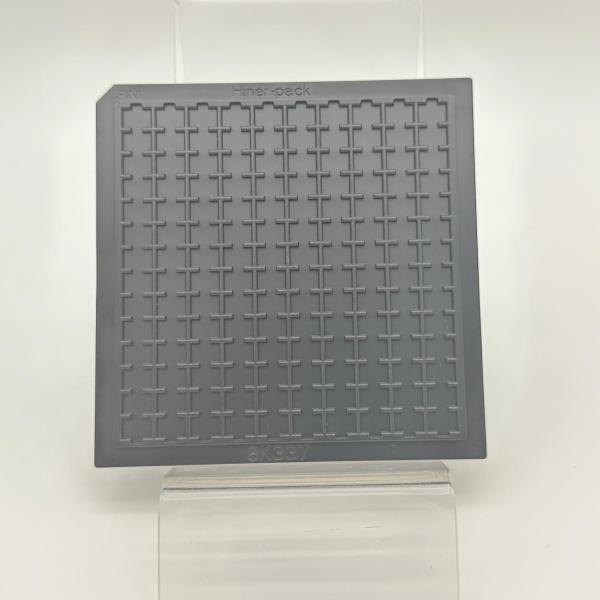

- The waffle packs are designed to be small, thin, and convenient to use. They offer a reliable way of protecting small parts during transportation, storage, and handling. The packs comprise a plastic base with a grid of regularly spaced cavities or pockets impressed on its surface. These pockets or cavities hold the small parts in place, keeping them organized and secure.
Technical Parameters:
| Product Name | Waffle pack/IC Chip Tray |
| Pocket Size | 7.2*4.75*1.5mm |
| External Dimension | 101.57x101.57x5.5mm |
| Matrix Qty | 10X14=140PCS |
| MOQ | 1000 pcs |
| Place of Origin | China |
| Delivery Time | 1-2 weeks |
Applications:
- Wafer Handling: Waffle packs are designed to securely store and transport silicon wafers during various manufacturing processes. Their design prevents movement and protects wafers from contamination and damage.
- Die Packaging: After cutting wafers into individual dies, waffle packs are used to store and protect the Integrated Circuits (ICs) before they are mounted onto Printed Circuit Boards. This minimizes the risk of physical damage or contamination.
- Transporting Tested Components: Components that have undergone functional testing are transported using waffle packs to ensure they remain clean and undamaged during transit to packaging lines or storage.
Features:
- Polystyrene: Rigid and clear, allowing visibility of components. Cost-effective and widely used in packaging; can be treated for anti-static properties.
- Conductive Plastics: Made with carbon or metal additives to provide conductivity. These materials dissipate static electricity, further protecting sensitive components.
- Thermoplastics: Can be easily molded and reshaped. Versatile for creating custom waffle pack designs that fit specific components.
Support and Services:
- 24/7 technical support hotline
- Online technical support portal
- Access to product manuals and documentation
- Regular software updates and patches
- On-site and remote technical support services
- Product training and certification programs
- Product repair and maintenance services
- Product replacement and exchange programs
FAQ:
Q1: What is the brand name of this IC Chip Tray?
A1: The brand name of this IC Chip Tray is Hiner-pack.
Q2: Where is this IC Chip Tray made?
A2: This IC Chip Tray is made in China.
Q3: What is the minimum order quantity for this IC Chip Tray?
A3: The minimum order quantity for this IC Chip Tray is 1000.
Q4: What is the price of this IC Chip Tray?
A4: The price of this IC Chip Tray is to be confirmed.
Q5: What is the delivery time for this IC Chip Tray?
A5: The delivery time for this IC Chip Tray is 1~2 weeks.
