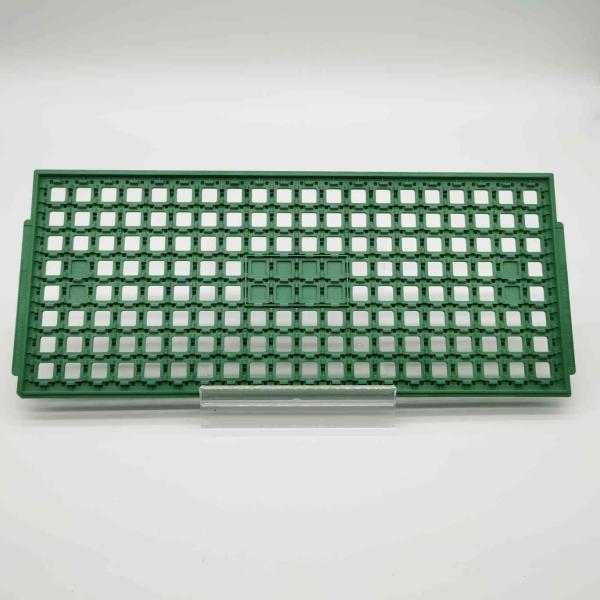

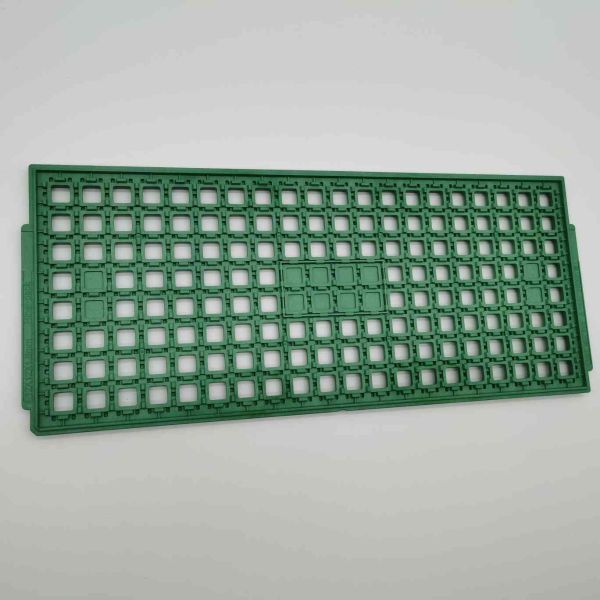

Antistatic PPE Green Jedec IC Trays
Antistatic PPE Green Standard Jedec Trays Customized For BGA IC Chips
Green high temperature tray in order to meet the carrying function of the chip at the same time, the production of different colors of the tray for loading and classification of chips, different colors can also be used to distinguish the chip produced in different periods, classification and storage box identification is a good choice.
This product can be provided in both green and black colors, and the cost of black is lower than that of color. If you just choose black for ordinary transportation, you can choose colored plates for loading if you need to differentiate the date code and other needs, which can be produced and deployed according to customer requirements.
| Jedec Tray |
| Outline Line Size |
322.6*135.9*7.62mm |
Brand |
Hiner-pack |
| Model |
HN1839 |
Package Type |
BGA IC |
| Cavity Size |
12*12*1.8mm |
Size |
Customized |
| Material |
PPE |
Flatness |
MAX 0.76mm |
| Resistance |
1.0x10e4-1.0x10e11Ω |
Service |
Accept OEM,ODM |
| Color |
Green &Black |
Certificate |
ROHS |
Product Application
Package IC PCBA module component
Electronic component packaging Optical device packaging
Packaging
Packaging Details:Packing according to customer's specified size
| Material |
Bake Temperature |
Surface Resistance |
| PPE |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber |
Bake 125°C~Max 150°C |
1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber |
Max 180°C |
1.0*10E4Ω~1.0*10E11Ω |
| IDP Color |
85°C |
1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature and other special requirements can be customized |
FAQ
1. How can I get a quotation?
Reply:Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For purchasing or further discussion, it is better to contact us with Skype / Email / Phone / Whatsapp, in case of any delays.
2. How long will it take to get a response?
Reply:We will reply to you within 24 hours of working day.
3. What kind of service we provide?
Reply:We can design IC Tray drawings in advance based on your clear description of the IC or component.Provide one-stop service from design to packaging and shipping.
4. What is your terms of delivery?
Reply:We accept EXW,FOB,CIF,DDU,DDP etc. You can choose the one which is the most convenient or cost effective for you.
5. How to guarantee quality?
Reply:Our samples through strict testing, the finished products comply with the international JEDEC standards, to ensure 100% qualified rate.
